2022.05.30

Staying flexible

Researchers at Chuo University invent a flexible patch containing carbon nanotubes and stretchable conductors that can fit inside a pipe to detect real-time changes in water temperature or the presence of contaminants, which may improve sanitation during industrial processes

Scientists from Chuo University, in collaboration with Osaka University, Tokyo Institute of Technology, Eindhoven University of Technology and National Institute of Advanced Industrial Science and Technology have developed a non-destructive sheet sensor for liquid quality monitoring. Using voltages generated in a carbon nanotube layer, the method does not require sampling, chemical labels, or an external light source. The application of this research may enable the on-site quality control of chemical factories or environmentally sensitive water sites.

The monitoring of the chemical content in the water flowing through pipes is critical for industrial applications, such as food or beverage production, as well as for identifying environmental contamination in the effluent that reaches the environment. However, current methods require the periodic collection of samples for testing, as well as the use of chemical reagents or labels. A new approach is needed for non-destructive continuous monitoring.

Now, a team of researchers has invented a flexible sheet that uses an embedded carbon nanotube film as a photodetector layer. When exposed to light radiation, the carbon nanotubes can produce an electric voltage, which can be detected by attached electrodes. "Our stretchable sheet device is equipped with a high-sensitivity, broadband optical sensor, which enables it to be attached to a wide variety of pipe shapes," author Li Kou and Teppei Araki say.

Changes in water temperature could also be monitored passively based on blackbody radiation. For impurity detection or beverage inspection, an external terahertz or infrared light source may be used. This allows spectroscopy methods to be applied continuously to flowing liquids. "The optical sensor sheet can easily visualize the concentration, temperature, viscosity, and location of cracks and liquids in pipes, contributing to the realization of future environmental measurement systems," say senior author Yukio Kawano and Tsuyoshi Sekitani. The researchers tested the system and found a linear response between glucose concentration and passively generated voltage.

The team hopes that this research can lead to the modernization of industrial quality control methods, in which contaminant concentrations can be monitored continuously, rather than during scheduled collections.

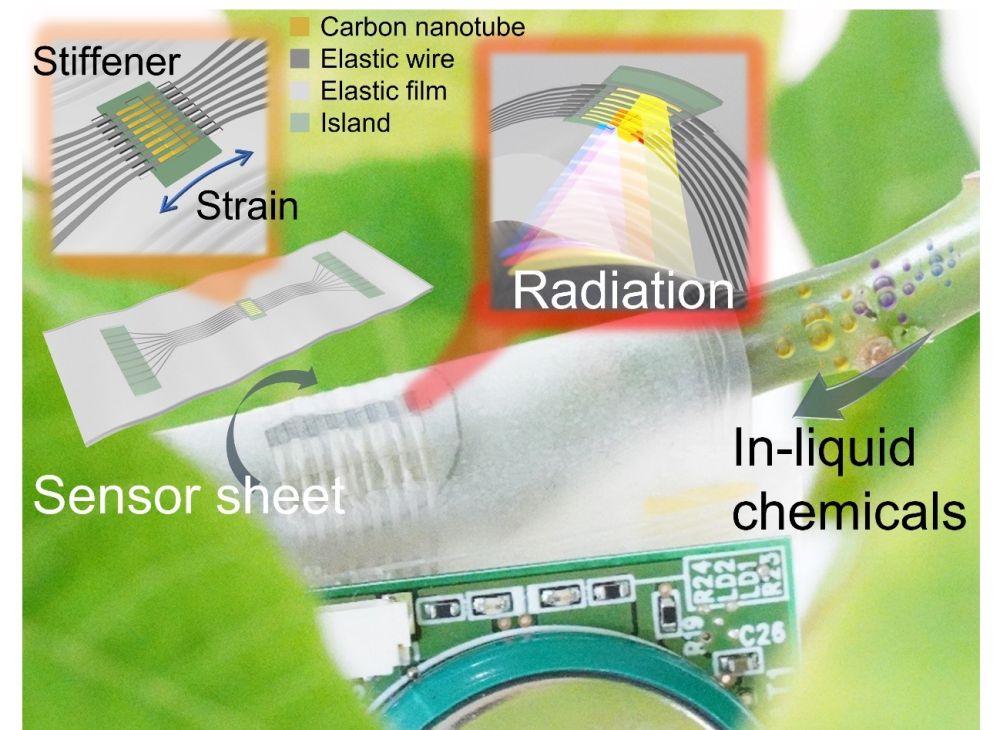

Figure 1.Overview of the research project. The sensor sheet, which fits on a 3-cm square, can be attached to pipes of various sizes and shapes by taking advantage of its elasticity.

Credit (copyright) notation : 2022 Kou Li et al. Stretchable broadband photo-sensor sheets for nonsampling, source-free, and label-free chemical monitoring by simple deformable wrapping. Science Advances

Figure 2. Overview and basic performance of the sensor sheet fabricated during this study.

Credit (copyright) notation : 2022 Kou Li et al. Stretchable broadband photo-sensor sheets for nonsampling, source-free, and label-free chemical monitoring by simple deformable wrapping. Science Advances

Figure 3.Schematic diagram of a liquid quality measurement. (A-B) Conceptual diagram of the measurement principle. (C-D) Example of a simple aqueous solution concentration measurement. (E-I) Nondestructive 3D-image reconstruction of shielded liquid flow. (J) Visualization of aqueous solution concentration changes.

Credit (copyright) notation : 2022 Kou Li et al. Stretchable broadband photo-sensor sheets for nonsampling, source-free, and label-free chemical monitoring by simple deformable wrapping. Science Advances

Reference

Authors :Kou Li1,2, Teppei Araki3, Ryogo Utaki1,2, Yu Tokumoto1,2, Meiling Sun1,2, Satsuki Yasui1,2, Naoko Kurihira3, Yuko Kasai3, Daichi Suzuki4, Ruben Marteijn5, Jaap M.J. den Toonder5, Tsuyoshi Sekitani3*, Yukio Kawano1,2,6,7*

Title of original paper :Stretchable broadband photo-sensor sheets for nonsampling, source-free, and label-free chemical monitoring by simple deformable wrapping

Journal :Science Advances

DOI :10.1126/sciadv.abm4349
